What are Rails and Stiles on Doors?

March 12, 2025 | Commercial Doors
What are Rails and Stiles on Doors?

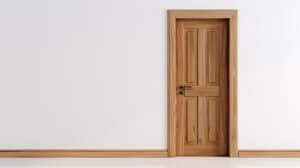

brown wooden door isolated on a white background.

Rails and stiles are the vertical and horizontal pieces that provide structure to panel doors, hollow core doors, and solid wood doors. They’re constructed using a frame-and-panel method, with each component built separately and connected using tenon and mortise joints. (Tenons are projecting pieces of wood that fit seamlessly into mortises, or carved recesses in a wooden panel.)

Stiles

Stiles are the largest components. They’re the vertical slats on each side of the door. When selecting a door, stile width is one of the most important factors to consider, especially if you’re installing a mortise lock or push bar. Since these devices are generally 1.75-2 inches thick, doors with thin stiles may be hard to secure with traditional latching equipment. Stiles also provide a strong, stable surface for the hinges to anchor to, ensuring the door opens and closes smoothly, without bowing, twisting or sagging.

Rails

Rails are the horizontal cross beams that connect the stiles, mullions, and flat panels that make up the door. Wooden doors have several rails, each of which can be used to support several different types of hardware.

  • Top Rail. The uppermost horizontal rail, where concealed and surface-mounted closers are installed.
  • Intermediate Rail. Used only to provide additional structural support to panel doors (hollow core doors and solid core doors don’t have them), intermediate rails are located near the top, in between the top rail and lock rail. If you have a lite (glass window) in your door, it may be partially embedded in the intermediate rail.
  • Lock Rail. Located around the middle section of the door, lock rails contain the lockset and latch. They’re normally a bit thicker than the top rail or intermediate rail, to ensure the repetitive action of locking and unlocking the door doesn’t compromise its structure.
  • Bottom Rail. Located at the bottom of the door, they secure the bottom panels of the door. Because they are the section most likely to be struck (by feet or carts, for instance), they’re normally thicker than the other rails. To enhance durability, owners often reinforce the bottom rail with a steel or aluminum kick plate.

Not every type of door contains rails and stiles. Rolling and sliding doors have entirely different structures, for example. Rail and stile doors are found in nearly all private homes, but a number of commercial buildings such as shops, schools, hotels, offices, and healthcare centers have them as well – though they’re mostly interior doors. Exterior doors in these settings are normally made from tempered glass or steel.

Door Repair and Maintenance

Vortex technicians are trained to inspect, diagnose, and repair problems with stile and rail doors and their hardware. We identify wear, warping, cracking, swelling, and loose hardware. Once we’ve identified the issue, we take steps to restore your doors as quickly as possible, before the problem escalates and the door becomes difficult or impossible to open or close. Make sure your doors operate reliably. Contact us today to learn more about our service and repair programs.
